前言

本文是基于 Github Fuzzing-Module 的 Fuzzing 学习笔记。如有不准确的地方,万望大佬们斧正。

Exercise 1

首先,我们获取得到如下源码:

#include <iostream>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
using namespace std;
int main() {
string str;
cout << "enter input string: ";
getline(cin, str);
cout << str << endl << str [0] << endl;
if(str[0] == 0 || str[str.length() - 1] == 0) {
abort();
}
else {
int count = 0;
char prev_num = 'x';
while (count != str.length() - 1) {
char c = str[count];
if(c >= 48 && c <= 57) {
if(c == prev_num + 1) {
abort();
}
prev_num = c;
}
count++;
}
}
return 0;
}

通过代码审计我们很容易发现存在 3 个崩溃点 (Crash Point)。接下来我们将用 afl++ 来发现这 3 种崩溃点。

我们需要创建 build 文件夹用于存放编译好的可执行二进制文件。此外,我们需要创建 seeds 目录和 out 目录。

通过审计代码可以知道程序利用 stdin 标准输入流进入读入。因此我们需要选用 AFL++ 的 stdin 模型。因为本程序逻辑简单,我个人感觉没有啥很好的结构化 seed。所以我们直接使用 for i in {0..4}; do dd if=/dev/urandom of=seed_$i bs=64 count=10; done 创建 5 个随机 seed

因为是有源码的,所以我们可以利用 afl-clang-fast++/afl-g++-fast 来快速编译 .cpp 文件。

我们稍微对比一下 afl-clang-fast++/afl-g++-fast

维度afl-clang-fast++afl-g++-fast
编译器后端LLVM / ClangGCC
插桩方式LLVM IR 级插桩GCC 插件
插桩精度高(边覆盖)中(基本块)
执行速度⭐⭐⭐⭐⭐⭐⭐⭐
稳定性
CMPLOG / RedQueen完整支持❌(几乎不可用)
Sanitizer 兼容极好有限
维护状态主力路线兼容路线

LLVM 插桩可以:

  • 捕获比较操作
  • 反推输入
  • 快速命中深层逻辑

基于上述情况,afl-clang-fast++ 几乎是主力和首选。但是因为 clang 本身的限制,导致在部分场景中必须使用 gcc/g++,例如编译内核,特殊的 ABI (clang 不支持编译),强制使用 gcc 编译的。

回到本道练习题,我们自然首选 afl-clang-fast++

Terminal window
afl-clang-fast++ \
-O0 -g \
-fsanitize=address,undefined \
./simple_crash.cpp \
-o build/simple_crash

随后使用如下指令开始 fuzz。

注意设置 echo core | sudo tee /proc/sys/kernel/core_pattern

Terminal window
afl-fuzz \
-i ./seeds \
-o ./out \
-- .build/simple_crash

等待几分钟后使用 Ctrl+c 退出 fuzz。然后,我本人得到了如下的 fuzz 结果。

Terminal window
exercise1 git:(main) xxd out/default/crashes/id:000000,sig:06,src:000003,time:297,execs:183,op:int16,pos:2,val:+0
00000000: b6c4 0000 ....
exercise1 git:(main) xxd out/default/crashes/id:000001,sig:06,src:000003,time:413,execs:254,op:havoc,rep:2
00000000: 00c4 8711 ....
exercise1 git:(main) xxd out/default/crashes/id:000002,sig:06,src:000003,time:1512,execs:909,op:havoc,rep:2
00000000: a831 b129 eecd 22c8 d00f 8771 6ae1 7897 .1.).."....qj.x.
00000010: 9ecc 3203 1f5e 2e51 caf8 d617 c48d 6173 ..2..^.Q......as
00000020: c40a 11

可以看到 3 种崩溃点都已经成功捕获了。

Exercise 2

第 2 道训练题发生了些许变化。相较于第 1 道训练题,本题给出了 3 个文件:airplane_object.cpp,airplane_object.hpp,main.cpp

这里我们就需要继续了解一下 AFL++ 提供的编译链接工具了。这次我们需要比较 afl-clang-fast++afl-clang-lto++

维度afl-clang-fast++afl-clang-lto++
插桩阶段编译期(per Translation Unit)链接期(Whole Program IR)
插桩机制LLVM IR pass(逐 TU)LLVM LTO pass(全程序)
覆盖率模型基本块 / 边(hash)精确边级覆盖(edge-accurate)
覆盖率质量更高(更少 hash 冲突)
路径判别能力中–高
新路径“假阳性”较多显著更少
执行速度更快(≈ +5–15%)
构建复杂度
编译稳定性非常稳定对构建系统更敏感
支持的优化级别-O0 / -O1 / -O2强烈推荐 -O2/+
-O0 兼容性完全兼容⚠️ 技术可行,但价值极低
与 ASAN 兼容性最佳实践组合可用,但慢
与 UBSAN 兼容性可用可用
与 CMPLOG 组合作为主 fuzz 或 cmplog推荐作为主 fuzz
支持 Persistent Mode
对 inline / template 感知有限完整(全局视角)
适合项目规模小 / 中中 / 大
适合 fuzz 阶段初期 / 调试长期深度 fuzz
Crash 可调试性极高(-O0 + -g)中等(优化影响栈)
工程可维护性
推荐学习成本中–高
典型用途教学、PoC、漏洞定位高质量覆盖、长时间跑 fuzz

这里感觉 fastlto 都可以胜任。但 lto 可以在全程序视角进行插桩,因此多 .cpp 编译我觉得还是 lto 会更有优势一点。

接下来我们编写一个 Makefile 来经行程序编译。

# ============================================================
# Common settings
# ============================================================
SRCS := $(wildcard *.cpp)
TARGET := airplane
CXXFLAGS_COMMON := -std=c++17 -Wall
INCLUDES :=
# ============================================================
# FAST build (afl-clang-fast++, ASAN/UBSAN, -O0)
# ============================================================
FAST_DIR := build/fast
FAST_CXX := afl-clang-fast++
FAST_CXXFLAGS := $(CXXFLAGS_COMMON) -O0 -g
FAST_OBJS := $(SRCS:%.cpp=$(FAST_DIR)/%.o)
FAST_BIN := $(FAST_DIR)/$(TARGET)
# ============================================================
# LTO build (afl-clang-lto++, -O2, no sanitizer)
# ============================================================
LTO_DIR := build/lto
LTO_CXX := afl-clang-lto++
LTO_CXXFLAGS := $(CXXFLAGS_COMMON) -O2 -g
LTO_OBJS := $(SRCS:%.cpp=$(LTO_DIR)/%.o)
LTO_BIN := $(LTO_DIR)/$(TARGET)
# ============================================================
# DEBUG build (plain clang++, gdb-friendly)
# ============================================================
DEBUG_DIR := build/debug
DEBUG_CXX := clang++-18
DEBUG_CXXFLAGS := $(CXXFLAGS_COMMON) -O0 -g
DEBUG_OBJS := $(SRCS:%.cpp=$(DEBUG_DIR)/%.o)
DEBUG_BIN := $(DEBUG_DIR)/$(TARGET)
# ============================================================
# Phony targets
# ============================================================
.PHONY: all fast lto debug clean
all: fast
# ---------------- FAST ----------------
fast: $(FAST_BIN)
$(FAST_BIN): $(FAST_OBJS)
$(FAST_CXX) $^ -o $@
$(FAST_DIR)/%.o: %.cpp
@mkdir -p $(FAST_DIR)
$(FAST_CXX) $(FAST_CXXFLAGS) $(INCLUDES) -c $< -o $@
# ---------------- LTO ----------------
lto: $(LTO_BIN)
$(LTO_BIN): $(LTO_OBJS)
$(LTO_CXX) $^ -o $@
$(LTO_DIR)/%.o: %.cpp
@mkdir -p $(LTO_DIR)
$(LTO_CXX) $(LTO_CXXFLAGS) $(INCLUDES) -c $< -o $@
# ---------------- DEBUG ----------------
debug: $(DEBUG_BIN)
$(DEBUG_BIN): $(DEBUG_OBJS)
$(DEBUG_CXX) $^ -o $@
$(DEBUG_DIR)/%.o: %.cpp
@mkdir -p $(DEBUG_DIR)
$(DEBUG_CXX) $(DEBUG_CXXFLAGS) $(INCLUDES) -c $< -o $@
# ---------------- CLEAN ----------------
clean:
rm -rf build

使用 AFL++ 官方推荐的做法,使用环境变量控制编译、运行行为。也可以手动在编译和链接时期都加入 -fsanitize=address,undefined。如果采用后者注意取消环境变量。

Terminal window
export AFL_USE_ASAN=1
export AFL_USE_UBSAN=1
export ASAN_OPTIONS=detect_leaks=0:abort_on_error=1
export UBSAN_OPTIONS=abort_on_error=1

通过审计我们不难发现程序还是使用 stdin 进行读入。但是这里明显是一种菜单类的问题。所以我并不像使用随机化 seeds 来完成这道 fuzz 训练。

通过代码审计我们知道合法的操作存在 hfltq。我们不是很关心 q 操作带来的终止效果。因此们可以给出一些简短的 seeds

Terminal window
echo '' > seed_empty
echo 'h' > seed_h
echo 'f' > seed_f
echo 'l' > seed_l
echo 't' > seed_t
echo 'hh' > seed_hh
echo 'hf' > seed_hf
echo 'ht' > seed_ht
echo 'hl' > seed_hl
echo 'ff' > seed_ff
# 下面是一个 crash point 可以试试加不加入该 seed 对 fuzz 带来的影响
# echo 'fftl' > seed_fftl

注意设置 echo core | sudo tee /proc/sys/kernel/core_pattern。 在使用 LTO 的过程中,一般使用如下环境变量设置:

  1. unset ASAN_OPTIONS
  2. unset AFL_USE_ASAN
  3. unset AFL_USE_UBSAN
  4. export AFL_USE_LTO=1 如果需要使用 ASAN fuzz,请设置如下环境变量: export ASAN_OPTIONS=detect_leaks=0:abort_on_error=1:symbolize=0

在都 fuzz 10 分钟的情况下,加入 fftl 的结果基本上是以 fftl 做变形触发的崩溃点,这样的崩溃点发现了 8 个。相反在不加入的情况下,只保存了 6 个用例。虽然后者的崩溃点本质上也是基于 fftl 但明显没有前者短小精悍。但我本人对这方面经验较浅,不好评价好坏。其次,在实战中我觉得已知崩溃点的去 fuzz 的概率小,反而是后者不知道崩溃点去 fuzz 的概率大。

下面陈列了不加入 fflt 的 fuzz 结果。

Terminal window
(workenv) exercise2 git:(main) xxd out/default/crashes/id:000000,sig:06,src:000000,time:51827,execs:6481,op:havoc,rep:15
00000000: d5ff 19d6 bcd6 d5ff 1959 916c 0002 6355 .........Y.l..cU
00000010: ad00 6601 0066 6359 91a7 a7a7 a7a7 a7a7 ..f..fcY........
00000020: a7a8 a6a7 a7a7 a7a7 c600 b3a7 a7a7 a7f7 ................
00000030: ffa7 a7a7 c6ce 6ca7 ......l.
(workenv) exercise2 git:(main) xxd out/default/crashes/id:000001,sig:06,src:000000,time:63109,execs:7533,op:havoc,rep:15
00000000: 7474 7400 0274 74f8 f8f8 f8f8 0002 7466 ttt..tt.......tf
00000010: 0100 6648 8574 926c 8574 9274 05c1 7466 ..fH.t.l.t.t..tf
00000020: 0100 6648 8574 d274 f5c0 7400 0174 7474 ..fH.t.t..t..ttt
00000030: 7474 8574 7474 802b 05c1 7466 0100 6648 tt.ttt.+..tf..fH
00000040: 8574 d274 05c1 feca 05c1 7474 8574 7474 .t.t......tt.ttt
00000050: 802b .+
(workenv) exercise2 git:(main) xxd out/default/crashes/id:000002,sig:06,src:000000,time:100066,execs:11585,op:havoc,rep:9
00000000: d6d5 55b9 0064 0000 0040 6666 6674 7475 ..U..d...@fffttu
00000010: e3ff ffff d6d5 55d6 d555 cee2 4949 4949 ......U..U..IIII
00000020: ce68 486c 6c6c 6c6c 64 .hHllllld
(workenv) exercise2 git:(main) xxd out/default/crashes/id:000003,sig:06,src:000000,time:106888,execs:12531,op:havoc,rep:9
00000000: 061f f815 f8f8 ffff 66ca 05c1 74ff 0156 ........f...t..V
00000010: 9574 fa13 fd00 666d b1a7 806c .t....fm...l
(workenv) exercise2 git:(main) xxd out/default/crashes/id:000004,sig:06,src:000000,time:203368,execs:21308,op:havoc,rep:5
00000000: 6666 6c6c 596c 6c6c 95fe cada c100 0000 ffllYlll........
00000010: 0000 666c 6c59 6c6c 6c95 e4ca 05c1 0000 ..fllYlll.......
00000020: 0066 0afe ca05 c1 .f.....
(workenv) exercise2 git:(main) xxd out/default/crashes/id:000005,sig:06,src:000000,time:224150,execs:23301,op:havoc,rep:14
00000000: 6c66 9574 0513 fd00 6c95 feca 05c1 0000 lf.t....l.......
00000010: 1f66 0000 666c 6c59 6c6c 6c74 9574 0513 .f..fllYlllt.t..
00000020: e905 c168 d46c d6d5 55c4 a8a8 a8a8 a8a8 ...h.l..U.......
00000030: a8a8 a8a8 ....

Exercise 3

本道练习题与 Exercise 2 又有所不同。从开发角度上来说,本题的源码的复杂度明显高于上一题(本题是一个简单的无人机项目)。因为题目已经给出了 cmake.txt 我们利用如下语句生成 Makefilecompile_commands.json

Terminal window
mkdir build
cd build
CC=afl-clang-lto CXX=afl-clang-lto++ cmake -DCMAKE_EXPORT_COMPILE_COMMANDS=1 ..

可以参考 fuzzing newbie guide 创建新 Source Trail 项目,以方便参考项目源码。

因为 Sourcetrail 很早就停止维护了。所以你可以使用 PeterMost 维护的版本。或者使用 openGrok 作为阅读工具。

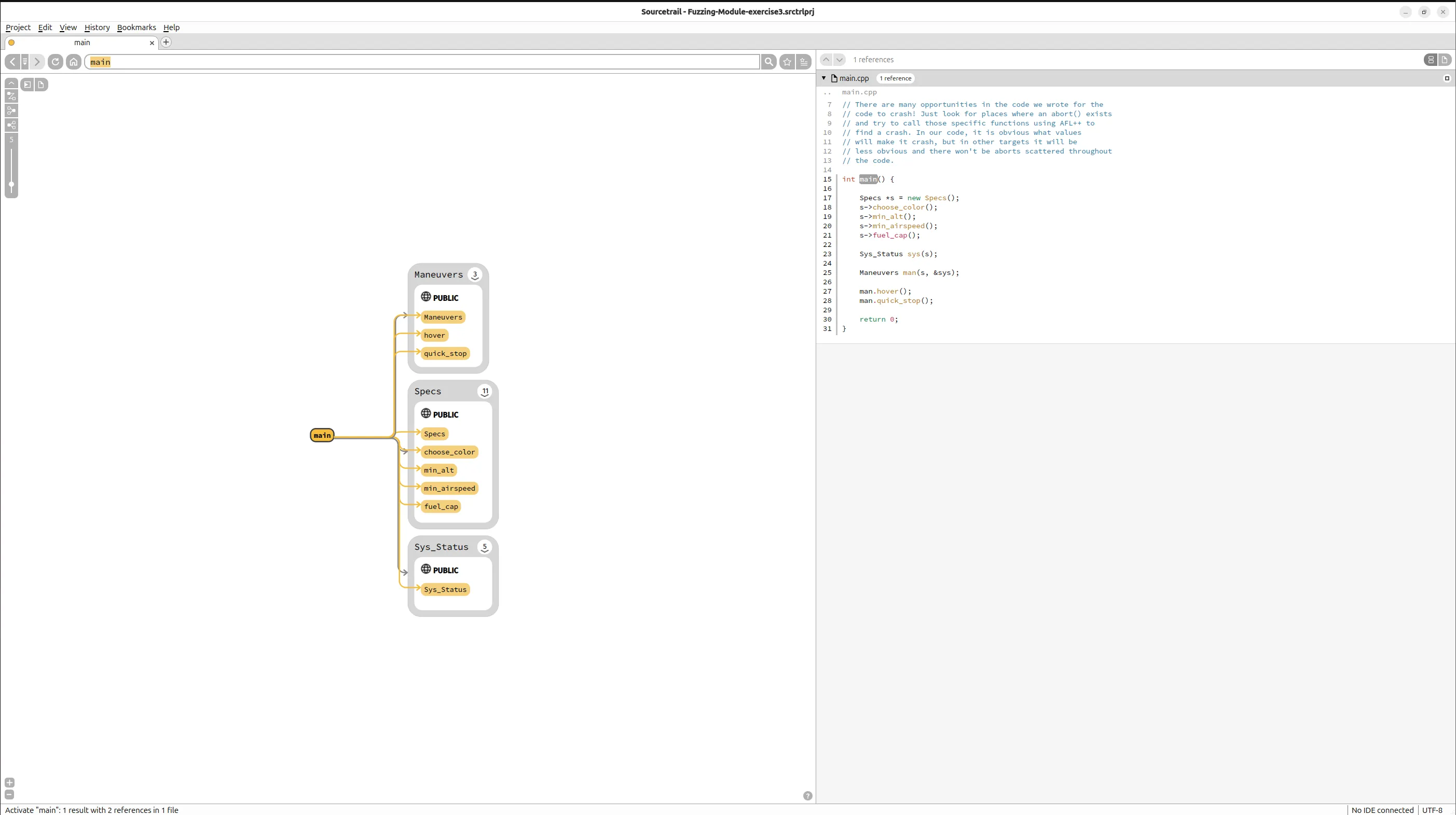

Sourcetrail GUI

本题的核心在于 Slice Fuzzing。至于为什么需要 Slice Fuzzing,可以参看 Fuzzing Program Slices,这里不进行过多赘述。

我从 Github 仓库给出的 specs-slice.cpp 入手了解如何利用 afl++ 进行 Slice Fuzzing。

int main(int argc, char** argv) {
// In order to call any functions in the Specs class, a Specs
// object is necessary. This is using one of the constructors
// found in the Specs class.
Specs spec(505, 110, 50);
// By looking at all the code in our project, this is all the
// necessary setup required. Most projects will have much more
// that is needed to be done in order to properly setup objects.
// This section should be in your code that you write after all the
// necessary setup is done. It allows AFL++ to start from here in
// your main() to save time and just throw new input at the target.
#ifdef __AFL_HAVE_MANUAL_CONTROL
__AFL_INIT();
#endif
spec.choose_color();
//spec.min_alt();
return 0;
}

代码逻辑很简单。因为 spec.choose_color() 需要依赖 Specs 类实例,因此 Specs spec(505, 110, 50) 是必要的。 而下述片段把 afl++ 的 fuzzing 起点精确切到“逻辑敏感代码之前”,避免每轮输入都重复昂贵的初始化路径。

#ifdef __AFL_HAVE_MANUAL_CONTROL
__AFL_INIT();
#endif

这里我们简单的做一个扩展。假设 spec.choose_color() 的行为与具体的 Specs 类实例关联。换言之,Specs spec(505, 110, 50) 需要纳入 Fuzz 区我们该怎么办?

比较推荐的方案是单次执行 + 人工控制。

#include <stdint.h>
#include <stdlib.h>
int main(int argc, char** argv) {
#ifdef __AFL_HAVE_MANUAL_CONTROL
__AFL_INIT();
#endif
// === 1. 读取 fuzz input ===
uint32_t a = 0, b = 0, c = 0;
if (read(0, &a, sizeof(a)) != sizeof(a)) return 0;
if (read(0, &b, sizeof(b)) != sizeof(b)) return 0;
if (read(0, &c, sizeof(c)) != sizeof(c)) return 0;
// === 2. 轻度约束(工程必要) ===
a %= 1000;
b %= 500;
c %= 200;
// === 3. fuzz 驱动的构造 ===
Specs spec(a, b, c);
// === 4. fuzz 目标逻辑 ===
spec.choose_color();
return 0;
}

下面是上述方案的正确性简要说明。

原因
forkserver 提前启动构造路径可学习
每次 exec 都新对象状态安全
构造 + 逻辑都在 slice 内覆盖完整

如果你想要引入 Persistent Mode。那么在 Specs 支持完全 reset、构造析构无泄漏、fuzz 吞吐是瓶颈的情况下,可以采用如下方案。

#include <stdint.h>
#include <unistd.h>
int main() {
#ifdef __AFL_HAVE_MANUAL_CONTROL
__AFL_INIT();
#endif
while (__AFL_LOOP(1000)) {
uint32_t a, b, c;
if (read(0, &a, sizeof(a)) != sizeof(a)) break;
if (read(0, &b, sizeof(b)) != sizeof(b)) break;
if (read(0, &c, sizeof(c)) != sizeof(c)) break;
a %= 1000;
b %= 500;
c %= 200;
Specs spec(a, b, c);
spec.choose_color();
}
return 0;
}

如果 Specs 内部:使用全局状态;使用 static cache;注册 signal / thread / fd。persistent mode 会引入假 crash。这种情况下,退回方案一。

此外还存在一种关键技巧:结构性输入。其使用场景如下:

  • Specs 参数语义强。
  • 简单 read() 难以触达深路径。
  • 你想做 value profiling
struct FuzzInput {
uint16_t alt;
uint16_t speed;
uint8_t fuel;
};
int main() {
#ifdef __AFL_HAVE_MANUAL_CONTROL
__AFL_INIT();
#endif
FuzzInput in;
if (read(0, &in, sizeof(in)) != sizeof(in)) return 0;
in.width %= 2000;
in.height %= 2000;
in.mode %= 4;
Specs spec(in.alt, in.fuel, in.speed);
spec.choose_color();
return 0;
}

如下是我们的 Fuzz 结果:

Terminal window
exercise3 git:(main) xxd out/default/crashes/id:000001,sig:06,src:000004,time:6,execs:75,op:havoc,rep:3
00000000: 0a .
exercise3 git:(main) xxd out/default/crashes/id:000002,sig:06,src:000004,time:16,execs:107,op:havoc,rep:7
00000000: 3636 0af5 f6ff ff01 00e9 00 66.........
exercise3 git:(main) xxd out/default/crashes/id:000003,sig:06,src:000004,time:297,execs:1382,op:havoc,rep:15
00000000: 3030 3030 3030 3030 3030 3030 3030 3030 0000000000000000
exercise3 git:(main) xxd out/default/crashes/id:000000,sig:06,src:000004,time:3,execs:62,op:havoc,rep:3
00000000: 310a 1.

如法炮制,我们还能再测试 min_alt

int main(int argc, char** argv) {
// In order to call any functions in the Specs class, a Specs
// object is necessary. This is using one of the constructors
// found in the Specs class.
Specs spec(505, 110, 50);
// By looking at all the code in our project, this is all the
// necessary setup required. Most projects will have much more
// that is needed to be done in order to properly setup objects.
// This section should be in your code that you write after all the
// necessary setup is done. It allows AFL++ to start from here in
// your main() to save time and just throw new input at the target.
#ifdef __AFL_HAVE_MANUAL_CONTROL
__AFL_INIT();
#endif
// spec.choose_color();
spec.min_alt();
return 0;
}

fuzz 结果:

Terminal window
exercise3 git:(main) xxd out/default/crashes/id:000000,sig:06,src:000000,time:4,execs:63,op:havoc,rep:9
00000000: 2d32 f5ff ffff 3134 3734 3833 eded eded -2....147483....
00000010: ed36 .6

Thanks for reading!

Fuzzing-Module Write-ups

Sat Jan 17 2026 Pin
3137 words · 20 minutes
